GenSlave Setup Guide

This guide covers how to set up and configure GenSlave, the relay controller component that runs on a Raspberry Pi Zero 2W.

Table of Contents

Overview

GenSlave is a lightweight FastAPI application that:

  • Controls the relay connected to your generator's two-wire start input
  • Receives heartbeats from GenMaster and synchronizes state
  • Triggers failsafe if communication with GenMaster is lost
  • Displays status on the LCD screen (Automation Hat Mini)
  • Sends notifications via Apprise when failsafe triggers

Architecture

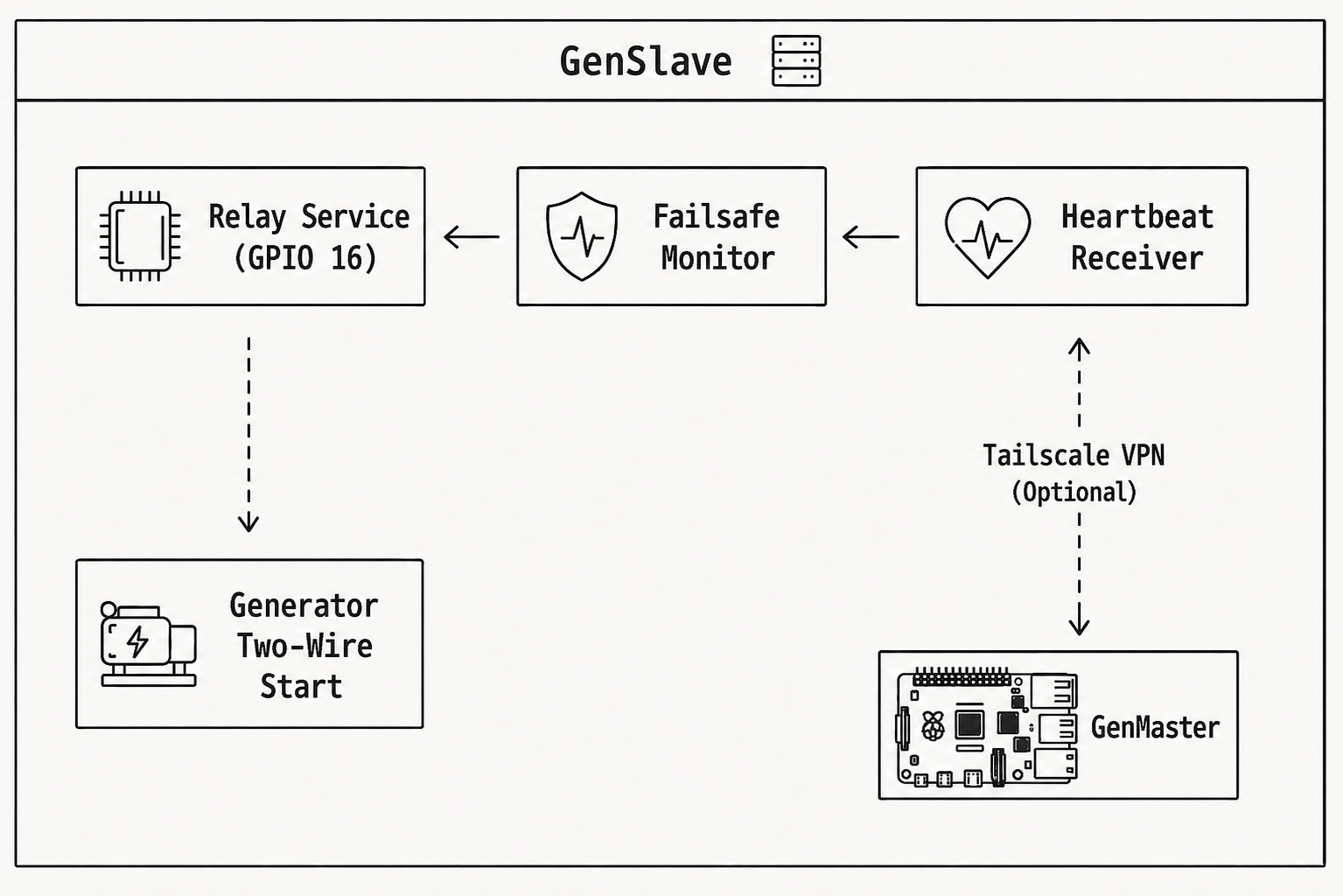

GenSlave Internal Architecture

Hardware Requirements

Raspberry Pi Zero 2W

Spec Requirement
Model Pi Zero 2W (recommended) or Pi Zero W
RAM 512MB (sufficient for GenSlave)
Storage 8GB+ microSD card
Power 5V 2.5A power supply

Automation Hat Mini

The Pimoroni Automation Hat Mini provides:

  • 1 Relay - 24V 2A switching (connects to generator)
  • 1 LCD - 160x80 pixel display for status
  • 3 Inputs - Digital/analog inputs (not used)
  • 1 Output - Additional output (not used)

Wiring

Connect the Automation Hat Mini relay to your generator's two-wire start terminal:

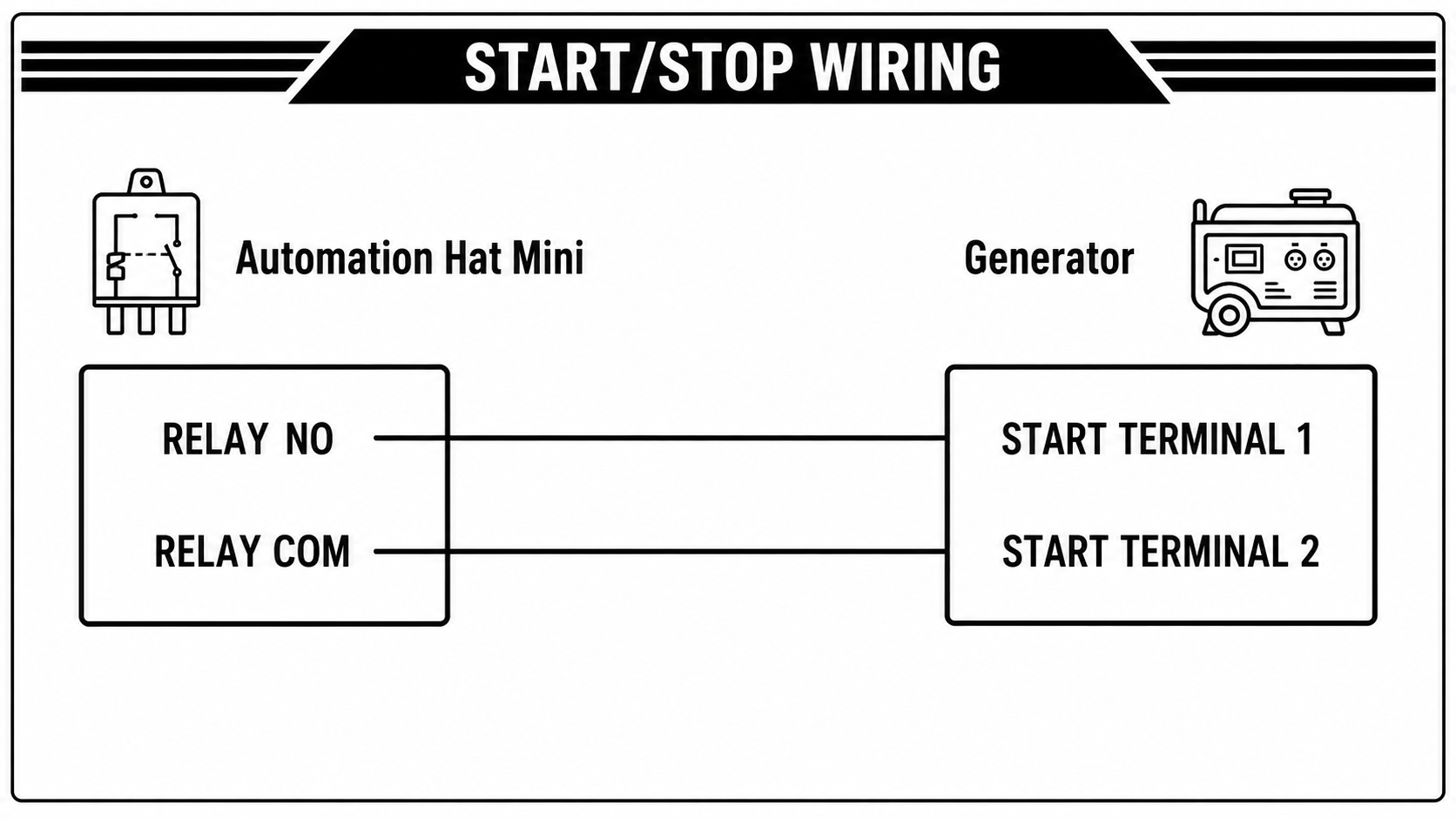

GenSlave Wiring

  • NO = Normally Open
  • COM = Common
  • Use appropriate gauge wire for your installation

Warning: Consult your generator's manual and a qualified electrician before making connections.

Installation

Quick Start with Pre-built Image

# SSH into your Pi Zero 2W
ssh pi@your-pi-zero.local

# Create installation directory
sudo mkdir -p /opt/genslave
cd /opt/genslave

# Download docker-compose.yaml
curl -O https://raw.githubusercontent.com/rjsears/pizero_generator_control/main/genslave/docker-compose.yaml

# Create .env file (see Configuration section)
nano .env

# Start GenSlave
docker compose up -d

Building from Source

If you need to build for your specific architecture:

# Clone the repository
git clone https://github.com/rjsears/pizero_generator_control.git
cd pizero_generator_control/genslave

# Build for ARM (Pi Zero)
docker buildx build --platform linux/arm/v7 -t genslave:local .

# Update docker-compose.yaml to use local image
# Change: image: rjsears/pizero_generator_control:genslave
# To: image: genslave:local

docker compose up -d

Verifying Installation

# Check container status
docker compose ps

# Check logs
docker compose logs -f

# Test health endpoint
curl http://localhost:8001/api/health

Configuration

Environment Variables

Create /opt/genslave/.env:

# Required: API secret (must match GenMaster's GENSLAVE_API_SECRET)
GENSLAVE_API_SECRET=your-secure-secret-here

# Optional: Failsafe timeout (seconds before failsafe triggers)
FAILSAFE_TIMEOUT_SECONDS=30

# Optional: Mock mode for testing without hardware
MOCK_HAT_MODE=false

# Optional: Apprise notification URLs (comma-separated)
APPRISE_URLS=tgram://bottoken/chatid

# Optional: Log level
LOG_LEVEL=INFO

Configuration Reference

Variable Description Default
GENSLAVE_API_SECRET Shared secret for API authentication Required
FAILSAFE_TIMEOUT_SECONDS Seconds without heartbeat before failsafe 30
MOCK_HAT_MODE Run without actual hardware false
APPRISE_URLS Notification service URLs Empty
LOG_LEVEL Logging verbosity INFO
HOST Bind address 0.0.0.0
PORT Listen port 8001

Docker Compose

The standard docker-compose.yaml:

services:
  genslave:
    image: rjsears/pizero_generator_control:genslave
    container_name: genslave
    restart: unless-stopped
    env_file: .env

    # Required for GPIO access
    privileged: true

    # Use host network for Tailscale
    network_mode: host

    volumes:
      - genslave_data:/opt/genslave/data
      - genslave_logs:/opt/genslave/logs
      - /var/run/dbus:/var/run/dbus:rw  # For WiFi management

    healthcheck:
      test: ["CMD", "python3", "-c", "import httpx; httpx.get('http://localhost:8001/api/health', timeout=5)"]
      interval: 30s
      timeout: 10s
      retries: 3

volumes:
  genslave_data:
  genslave_logs:

API Reference

GenSlave exposes a REST API on port 8001. Every endpoint requires the X-API-Key header. Authentication is mandatory — GenSlave refuses to start without a configured secret, and there is no opt-out flag. The secret is auto-generated by setup.sh (or pasted from an existing GenMaster install). See Security: GenMaster ↔ GenSlave authentication for the full rationale.

Health & Status

Method Endpoint Description
GET /api/health Health check with system status
GET /api/failsafe Failsafe monitor status

Relay Control

Method Endpoint Description
GET /api/relay/state Get relay and arm status
POST /api/relay/on Turn relay ON (requires armed)
POST /api/relay/off Turn relay OFF (always allowed)
POST /api/relay/arm Arm the automation
POST /api/relay/disarm Disarm the automation

Heartbeat

Method Endpoint Description
POST /api/heartbeat Receive heartbeat from GenMaster

System

Method Endpoint Description
GET /api/system System info (CPU, RAM, disk, network)
POST /api/system/reboot Reboot the Pi
POST /api/system/shutdown Shutdown the Pi

Example Requests

# Get relay state
curl http://genslave:8001/api/relay/state \
  -H "X-API-Key: YOUR_SECRET"

# Arm the relay
curl -X POST http://genslave:8001/api/relay/arm \
  -H "X-API-Key: YOUR_SECRET"

# Turn relay ON
curl -X POST http://genslave:8001/api/relay/on \
  -H "X-API-Key: YOUR_SECRET"

Failsafe System

The failsafe system is an independent safety mechanism that stops the generator if GenMaster communication is lost.

How It Works

  1. GenMaster sends heartbeats every 10 seconds
  2. GenSlave tracks last heartbeat timestamp
  3. If no heartbeat received within timeout period:
  4. Relay is turned OFF (generator stops)
  5. Notification is sent (if configured)
  6. failsafe_triggered flag is set
  7. When heartbeat resumes:
  8. Failsafe state is cleared
  9. "Restored" notification is sent
  10. GenMaster can re-arm and restart if needed

Dynamic Timeout

The failsafe timeout is calculated dynamically:

effective_timeout = heartbeat_interval × 3

GenMaster sends its heartbeat interval in each heartbeat, and GenSlave calculates 3 × interval as the timeout. This means:

  • Default heartbeat: 10 seconds → Timeout: 30 seconds
  • Custom heartbeat: 15 seconds → Timeout: 45 seconds

This allows the system to adapt if heartbeat timing changes.

Failsafe Status

Check failsafe status:

curl http://genslave:8001/api/failsafe \
  -H "X-API-Key: YOUR_SECRET"

Response:

{
  "running": true,
  "last_heartbeat": 1714567890,
  "seconds_since_heartbeat": 5,
  "heartbeat_count": 1234,
  "failsafe_triggered": false,
  "timeout_seconds": 30,
  "heartbeat_interval": 10,
  "timeout_source": "genmaster"
}

When Failsafe Triggers

  • Relay OFF is forced (even if armed)
  • Notification sent via Apprise (if configured)
  • Log entry created
  • GenSlave continues accepting heartbeats - when restored, it will sync with GenMaster

WiFi Configuration

GenSlave includes WiFi management endpoints for configuration via GenMaster.

Scan for Networks

curl http://genslave:8001/api/system/wifi/networks \
  -H "X-API-Key: YOUR_SECRET"

Add Known Network

Pre-configure a WiFi network for auto-connect:

curl -X POST http://genslave:8001/api/system/wifi/add \
  -H "X-API-Key: YOUR_SECRET" \
  -H "Content-Type: application/json" \
  -d '{
    "ssid": "MyNetwork",
    "password": "my-password",
    "auto_connect": true
  }'

Connect to Network

curl -X POST http://genslave:8001/api/system/wifi/connect \
  -H "X-API-Key: YOUR_SECRET" \
  -H "Content-Type: application/json" \
  -d '{
    "ssid": "MyNetwork",
    "password": "my-password"
  }'

Note: WiFi management requires the D-Bus socket to be mounted (/var/run/dbus:/var/run/dbus:rw).

Scheduled Reboot

GenSlave supports scheduled maintenance reboots for long-term reliability.

Configuration

Via API (proxied through GenMaster):

curl -X POST https://your-genmaster/api/genslave/reboot-schedule \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "enabled": true,
    "day": "sunday",
    "hour": 4,
    "minute": 0
  }'

Settings

Field Description Options
enabled Enable/disable scheduled reboots true/false
day Day of week or daily monday-sunday or daily
hour Hour (24-hour format) 0-23
minute Minute 0-59

Safety Check

The scheduled reboot only executes if: - The relay is OFF (generator not running) - Schedule is enabled - Current time matches schedule

If the generator is running at the scheduled time, the reboot is skipped for that day.

Troubleshooting

GenSlave Not Starting

  1. Check Docker logs:

    docker compose logs genslave

  2. Verify GPIO access:

  3. Ensure privileged: true in docker-compose.yaml

  4. Or use device mappings for /dev/gpiomem

  5. Check port availability:

    netstat -tlnp | grep 8001

Failsafe Keeps Triggering

  1. Check network connectivity:

    ping genmaster-tailscale-ip

  2. Verify API secret matches between GenMaster and GenSlave

  3. Check GenMaster heartbeat service:

    docker compose logs genmaster | grep heartbeat

Relay Not Working

  1. Verify hardware connection:
  2. Check Automation Hat Mini is properly seated

  3. Verify wiring to generator

  4. Test in mock mode: Set MOCK_HAT_MODE=true to test software without hardware

  5. Check relay manually:

    import automationhat
automationhat.relay.one.on()   # Should click
automationhat.relay.one.off()  # Should click

Cannot Reach GenSlave

  1. Check Tailscale status:

    tailscale status

  2. Verify port is listening:

    curl http://localhost:8001/api/health

  3. Check firewall:

    sudo iptables -L

LCD Not Displaying

  1. Check SPI is enabled:

    ls /dev/spidev*

  2. Verify automationhat import:

    docker compose exec genslave python3 -c "import automationhat; print('OK')"

Logs

View logs:

# Real-time logs
docker compose logs -f genslave

# Last 100 lines
docker compose logs --tail=100 genslave

Log files are persisted to the genslave_logs volume.

Updating

cd /opt/genslave

# Pull latest image
docker compose pull

# Restart with new image
docker compose up -d

# Verify update
docker compose logs -f
